Pivot Options

Centre & Offset Pivots

Pivots are generally classified as per contact area and location:

Pivot Type
Linear – Tilt perpendicular to contact axis only
Spherical – Offers unidirectional tilt adjustment

Pivot Location

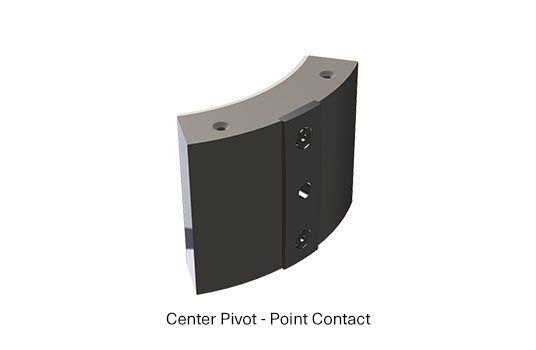

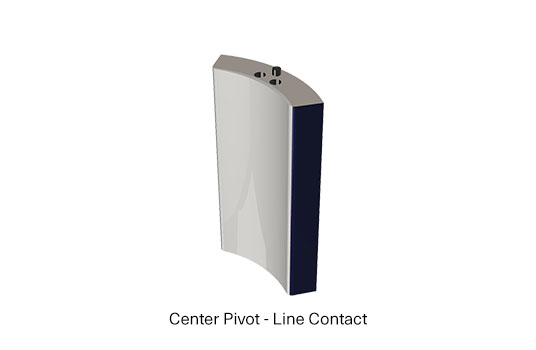

Centre Pivoted-Suitable for bi-directional rotation

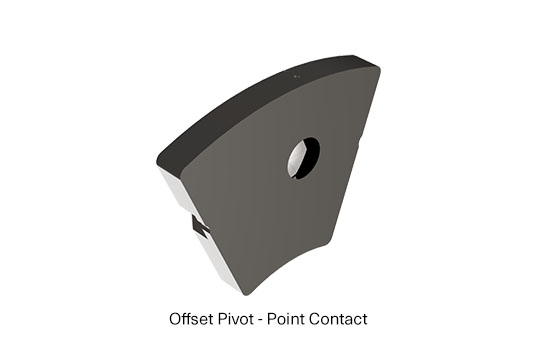

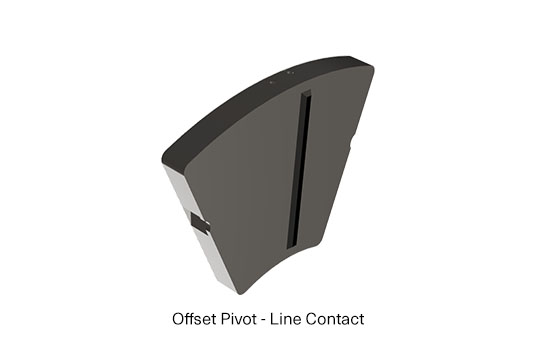

Offset Pivoted-Boosts load capacity by up to 30%, but restricted to 1 direction of rotation.

A combination of the above offered options can be used depending on project requirements.
